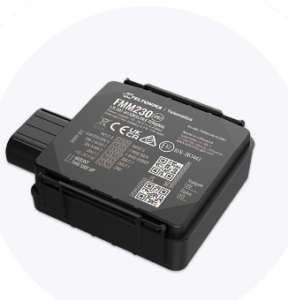

Teltonika FMM230

Manufacturer: Teltonika

FMM230 is a WATER AND DUST RESISTANT real-time tracking terminal with GNSS and LTE CAT-M1/NB-IoT/GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and LTE CAT-M1/NB-IoT modules with fallback to 2G network, internal GNSS and LTE antennas, configurable digital, analogue inputs and digital outputs, negative input, impulse inputs.

FMM230

The Teltonika FMM230 serves as a tracking terminal equipped with GNSS and GSM connectivity, allowing seamless collection and transmission of device coordinates via the GSM network to a server. This device caters perfectly to applications that necessitate remote object location acquisition.

For versatile connectivity, the FMM230 supports a power supply range of +10…+30 V. Its interface features include 3 digital inputs, 1 negative input (DIN2), 2 impulse inputs (DIN1, DIN2), 2 analog inputs, 3 digital outputs (for external relays, LED, buzzers, etc.), 1-Wire temperature sensor, 1-Wire iButton, LVCAN RX (INPUT 5), LVCAN TX (INPUT 6), and 2 LEDs indicating device status.

GNSS Features of Teltonika FMM230:

  • Quectel BG95-M3, Teltonika TM2500
  • SMS (text, data)
  • Technology LTE CAT M1/NB-IoT/GSM/GPRS/GNSS/BLUETOOTH
  • Integrated GNSS receiver
  • Up to -165 dBm GNSS receiver sensitivity

Hardware Highlights:

  • Built-in movement sensor
  • Built-in Bluetooth 4.0 LE
  • Internal High Gain GNSS antenna
  • Internal High Gain GSM antenna
  • Internal flash memory 128MB (422,400 Records)
  • 170 mAh Li-ion rechargeable 3.7 V battery

Interface Features:

  • Power supply range: +10…+30 V
  • 3 digital inputs
  • 1 negative input (DIN2)
  • 2 impulse inputs (DIN1, DIN2)
  • 2 analog inputs
  • 3 digital outputs (for external relays, LED, buzzers, etc.)
  • 1-Wire temperature sensor
  • 1-Wire iButton
  • LVCAN RX (INPUT 5)
  • LVCAN TX (INPUT 6)
  • 2 LEDs indicating device status

Special Attributes:

  • Swift position fix
  • High-quality tracking even in densely urban areas
  • Compact design
  • Durable in harsh environments
  • Easy to install in restricted access areas
  • Securely fastened
  • 2 LED status indicators
  • Real-time tracking
  • Intelligent data collection based on time, speed, angle, distance, ignition, or other I/O events
  • Data transmission through GPRS and SMS
  • Virtual odometer
  • Configurable via Secured SMS Commands
  • 1x micro SIM card; 1x eSIM
  • Overvoltage protection

The Teltonika FMM230 is a comprehensive solution suited for various industries, ensuring reliable and efficient tracking capabilities for remote object locations and their needs.

Integration is designed to meet specific requirements, subject to the applicable terms and conditions of our software.
