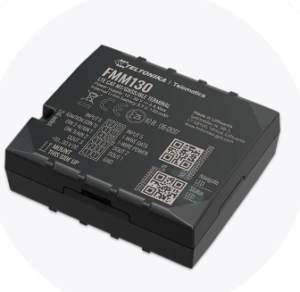

Teltonika FMM130

Manufacturer: Teltonika
FMM130

The Teltonika FMM130 is a compact and proficient real-time tracking terminal with GNSS and LTE Cat M1/NB-IoT/GSM connectivity, featuring a backup battery. The device is equipped with GNSS/Bluetooth and LTE Cat M1/NB-IoT modules, with support for 2G networks, internal GNSS and LTE antennas, and configurable digital and analog inputs, as well as digital outputs, negative input, and impulse inputs.

Key Features of Teltonika FMM130:

  • Quectel BG96, Quectel BG95-M3, TM2500
  • SMS (text, data)
  • Technology LTE Cat M1/NB-IoT/GSM/GPRS/GNSS/Bluetooth
  • Integrated GNSS receiver
  • Up to -165 dBm GNSS receiver sensitivity

Hardware Highlights:

  • Built-in movement sensor
  • Bluetooth 4.0 LE
  • Internal High Gain GNSS antenna
  • Internal High Gain GSM antenna
  • Internal flash memory 128MB (422,400 Records)
  • 170 mAh Li-ion rechargeable 3.7 V battery

Interface Features:

  • Power supply: +10…+30 V
  • 3 digital inputs
  • 1 negative input (DIN2)
  • 2 impulse inputs (DIN1, DIN2)
  • 2 analog inputs
  • 3 digital outputs (for external relays, LED, buzzers, etc.)
  • 1-Wire temperature sensor
  • 1-Wire iButton
  • LVCAN RX (INPUT 5)
  • LVCAN TX (INPUT 6)
  • 2 LEDs indicating device status

Special Attributes of Teltonika FMM130:

  • Swift position fix
  • High-quality tracking, even in densely urban canyons
  • Compact design
  • Suitable for harsh environments
  • Easy installation in limited access areas
  • Secure fastening
  • 2 LED status indicators
  • Real-time tracking
  • Intelligent data acquisition based on time, speed, angle, distance, ignition, or other I/O events
  • Data transmission via GPRS
  • Virtual odometer
  • Configurable through Secured SMS Commands
  • 1x micro SIM card; 1x eSIM
  • Overvoltage protection

The Teltonika FMM130 is a versatile tracking solution designed for efficiency and reliability in various applications, ensuring precise and effective real-time tracking capabilities.
