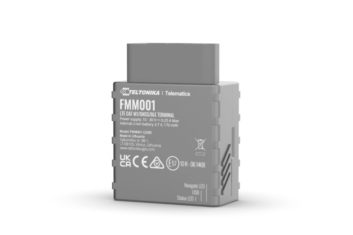

Teltonika FMM001

Manufacturer: Teltonika
fmm001

The Teltonika FMM001 serves as a tracking terminal with GNSS and GSM connectivity, efficiently gathering device coordinates and transmitting them via the GSM network to a server. Tailored for applications requiring precise location data for remote objects, it’s crucial to note that the FMM001 features a standard OBD-II interface, enabling the monitoring of fundamental vehicle parameters.

Key Specifications of Teltonika FMM001:

  1. Quectel BG96 and TM2500 Quad Band Module:
    • LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B28 LTE TDD: B39 (for CAT M1 only), GSM 850 / 900 / 1800 / 1900 MHz.
  2. GPRS Multi-Slot Class 12:
    • Up to 240 kbps data transfer for efficient communication.
  3. SMS Functionality:
    • Supports text and data messages.
  4. Integrated GNSS Receiver:
    • Achieves receiver sensitivity up to -165 dBm.

Noteworthy Hardware Features of Teltonika FMM001:

  1. Built-in Sensors:
    • Includes a movement sensor for enhanced tracking.
  2. Bluetooth Compatibility:
    • Equipped with Bluetooth 3.0 and Bluetooth 4.0.
  3. High-Gain Antennas:
    • Internal GNSS and GSM antennas optimize signal reception.
  4. Ample Storage:
    • 128 MB Flash, accommodating 422,400 records.
  5. Rechargeable Battery:
    • 170 mAh Li-ion, 3.7 V capacity.

Interface Features of FMM001:

  1. Power Supply Range:
    • Operates within +10 to +30 V.
  2. Versatile Connectivity:
    • Includes CAN, K-LINE, USB port, OBD II interfaces.
  3. LED Status Indicators:
    • Two LEDs providing device status updates.

Special Features of Teltonika FMM001:

  1. Swift Position Fix:
    • Ensures a rapid and accurate location fix.
  2. High-Quality Tracking:
    • Reliable tracking even in high-density urban canyons.
  3. Compact Design:
    • Features a small and practical case.
  4. Real-Time Tracking:
    • Provides live tracking updates.
  5. Smart Data Acquisition:
    • Based on time, speed, angle, distance, ignition, or other I/O events.
  6. Communication Modes:
    • Data transmission via GPRS and SMS I/O events.
  7. Security Measures:
    • Includes jamming detection and is configurable via secured SMS commands.
  8. Overvoltage Protection:
    • Safeguards against voltage fluctuations.

In conclusion, the FMM001 offers a comprehensive tracking solution with user-friendly features, ensuring easy integration and reliable performance for various applications.
