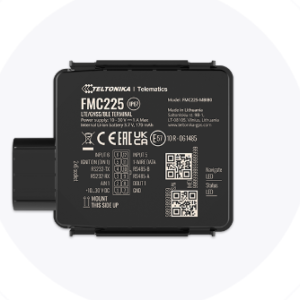

Teltonika FMC225

Manufacturer: Teltonika
FMC225

The Teltonika FMC225 serves as a tracking terminal, connecting through GNSS and GSM, gathering device coordinates transmitted via GSM networks to servers. It’s a fitting choice for tasks needing remote object location.

Equipped with various features like MeiG SLM320-E, MeiG SLM320-LA, Quectel EC21-EC, Quectel EC21-AU, Quectel EC21-J, Quectel EC21-KL, and the Teltonika TM2500, it embraces LTE, 3G, 2G, GNSS, and Bluetooth technologies.

Its hardware offers a movement sensor, Bluetooth 4.0 LE, high-gain internal GNSS and GSM antennas, 128MB flash memory, and a rechargeable 170mAh Li-ion battery.

Features of Teltonika FMC225:

  • MeiG SLM320-E, MeiG SLM320-LA, Quectel EC21-EC, Quectel EC21-AU, Quectel EC21-J, Quectel EC21-KL, Teltonika TM2500
  • Technology: LTE(CaT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS/BLUETOOTH
  • SMS (text, data)
  • Integrated GNSS receiver
  • Up to -165 dBm GNSS receiver sensitivity

Hardware features of Teltonika FMC225:

  • Built-in movement sensor
  • Built-in Bluetooth 4.0 LE
  • Internal High Gain GNSS antenna
  • Internal High Gain GSM antenna
  • Internal flash memory 128MB (422,400 Records)
  • 170mAh Li-ion rechargeable 3.7V battery

Interface features:

  • Power supply: +10… +30 V
  • 2 digital inputs
  • 1 analog input
  • 1 open collector digital output (connecting external relays, LED, buzzers, etc.)
  • 1-Wire temperature sensor
  • 1-Wire iButton
  • LVCAN RX (INPUT 5)
  • LVCAN TX (INPUT 6)
  • 1 RS-232 interface
  • 1 RS-485 interface
  • 2 LEDs indicating device status

Special features of Teltonika FMC225:

  • Fast position fix (Outdoor areas)
  • High Quality track even in high-density urban canyon
  • Ultra-small case
  • Ready for a harsh environment
  • Easy to mount in limited access areas
  • Firmly fasten
  • 2 LED status indications
  • Real-time tracking
  • Smart data acquisition based on:
    • Time
    • Speed
    • Angle
    • Distance
    • Ignition or any other I/O event
  • Sending acquired data via GPRS
  • GPRS and SMS I/O events
  • Virtual odometer
  • Jamming detection
  • Configurable using Secured SMS Commands
  • 1x micro SIM card; 1x eSIM
  • Overvoltage protection

Integration is designed to meet specific requirements and is subject to the applicable terms and conditions of our software.
