Teltonika FMC125

Manufacturer: Teltonika

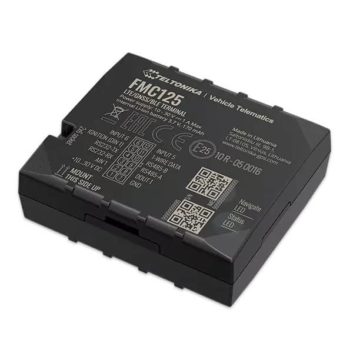

Teltonika FMC125

Teltonika FMC125 is a compact High-Level series device featuring 4G (LTE Cat 1) connectivity with 2G (GSM) backup compatibility. The device is equipped with GNSS/Bluetooth and LTE modules, internal GNSS, and LTE antennas.

Developed on the current Teltonika FMB platform, Teltonika FMC125 retains all functionalities of FMB125 and enhances them with superior network coverage.

Designed for seamless communication with various third-party RS232 or RS485 devices, such as digital fuel sensors (LLS), Garmin navigation devices, RFID readers, and more. It is particularly well-suited for refrigerated transport, offering an extended input/output set and a 1-wire interface for temperature monitoring.

The Dual SIM feature provides a backup communication channel in areas with insufficient coverage from a specific operator, helping to significantly reduce roaming costs.

While this is just a fraction of its existing capabilities, FMC125’s features contribute to making it a more efficient and versatile device.

Features of Teltonika FMC125:

  • Device Models: MeiG SLM320-E, MeiG SLM320-LA, Quectel EC21-EC, Quectel EC21-AU, Quectel EC21-J, Quectel EC21-KL, Teltonika TM2500
  • Technology: LTE(CaT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS/BLUETOOTH
  • Messaging: SMS (text, data)
  • GNSS Connectivity: Integrated GNSS receiver
  • GNSS Sensitivity: Up to -165 dBm GNSS receiver sensitivity

Hardware Features of Teltonika FMC125:

  • Motion Sensing: Built-in movement sensor
  • Bluetooth Version: Built-in Bluetooth 4.0 LE
  • Antennas: Internal High Gain GNSS antenna; Internal High Gain GSM antenna
  • Memory: Internal flash memory 128MB (422,400 Records)
  • Battery: 170 mAh Li-ion rechargeable 3.7 V battery

Interface Features:

  • Power Supply: +10… +30 V
  • Digital Inputs: 2
  • Analog Input: 1
  • Digital Output: 1 open collector digital output (connecting external relays, LED, buzzers, etc.)
  • Temperature Sensor: 1-Wire temperature sensor
  • Identification: 1-Wire iButton
  • CAN Bus Connectivity: LVCAN RX (INPUT 5); LVCAN TX (INPUT 6)
  • Serial Communication: 1 RS-232 interface; 1 RS-485 interface
  • Status Indicators: 2 LEDs indicating device status

Special Features of Teltonika FMC125:

  • Rapid Position Fix: Fast position fix in outdoor areas
  • Urban Canyon Tracking: High-quality tracking even in high-density urban canyons
  • Compact Design: Ultra small case
  • Environment Readiness: Ready for harsh environments
  • Easy Installation: Easy mounting in limited access areas
  • Secure Attachment: Firmly fasten
  • Status Indication: 2 LED status indicators
  • Real-Time Tracking: Continuous real-time tracking
  • Smart Data Acquisition: Based on time, speed, angle, distance, ignition, or any other I/O event
  • Data Transmission Options: Sending acquired data via GPRS; GPRS and SMS I/O events
  • Odometer Functionality: Virtual odometer
  • Jamming Detection: Jamming detection capability
  • Configuration Options: Configurable using Secured SMS Commands
  • Dual-SIM Support: Dual-SIM functionality with 2x SIM Card
  • Overvoltage Protection: Overvoltage protection mechanism

Integration is designed to meet specific requirements, subject to the applicable terms and conditions of our software.
