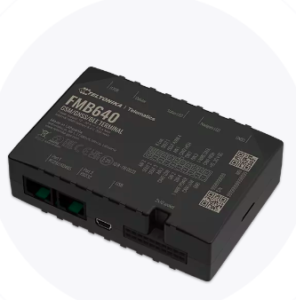

Teltonika FMB640

Manufacturer: Teltonika

Teltonika FMB640 is a GNSS, GSM terminal for Proficient applications. FMB640 is intended for complex arrangements, where one gadget can do various errands. FMB640 highlights like FMS CAN information (J1939), fuel CAN information (J1708), tachograph live information (K-line), far off tachograph document download, different outsider RS232 or RS485 gadgets support and Double SIM or eSIM will expand your armada effectiveness.

The Teltonika FMB640 functions as a tracking terminal with both GNSS and GSM connectivity, efficiently gathering device coordinates and transmitting them via the GSM network to a designated server. This device is ideal for applications that necessitate the remote tracking of objects.

Key Features of Teltonika FMB640:

Cellular Connectivity:

  • Utilizes GSM/GPRS technology.
  • 2G bands: Quad-band 800/850/900/1900 MHz.
  • GPRS Mobile Station Class B with Multi-Slot class 12 (up to 240 kbps).
    Supports SMS (text, data).

GNSS Features of Teltonika FMB640 :

  • Tracking with 33/99 acquisition channels.
  • -165 dBM sensitivity.
  • Rapid hot start (<1s), warm start (<25s), and cold start (<35s).
  • Adheres to NMEA-183 protocol.
  • Accuracy within <3m.

Hardware Specifications of Teltonika FMB640:

  • Equipped with an STM32 processor.
  • The internal Flash memory of 2 MB.
  • External memory card slot.
  • Built-in accelerometer.
  • Ni-Mh 550 mAh internal battery.

Interface Highlights of Teltonika FMB640:

  • Power supply range: +10…+30 V.
  • Integrated KLINE and support for Dual CAN J1939, J1708 CAN, RS485, and 2x RS232.
  • 4 Digital Inputs for object status monitoring.
  • 4 Digital Open-collector Outputs for controlling external devices.
  • 4 Analog Inputs.
  • 1-wire interface.
  • MicroSD card slot.
  • Dimensions: L(104.1mm) x W(76.8mm) x H(31.5mm).
  • Configuration and firmware updates via FOTA and USB cable.
  • External GSM and GNSS antennas for enhanced sensitivity.

Special Features of Teltonika FMB640:

  • Swift position fix.
  • High-quality tracking in urban canyons.
  • Compact design.
  • Suitable for harsh environments.
  • Easy installation in limited access areas.
  • Securely fastened.
  • 2 LED status indicators.
  • Real-time tracking capabilities.
  • Smart data acquisition based on time, speed, angle, distance, ignition, or other I/O events.
  • GPRS and SMS I/O event support.
  • Virtual odometer functionality.
  • Jamming detection.
  • Configurable via Secured SMS Commands.
  • Accommodates 1x micro SIM card and 1x eSIM.
  • Overvoltage and reverse polarity protection.

Integration is tailored to meet specific requirements, subject to applicable terms and conditions of our tracking software.
