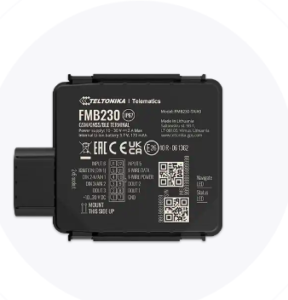

Teltonika FMB230

Manufacturer: Teltonika
FMB230

The Teltonika FMB230 stands out as a water and residue-safe tracker featuring internal GNSS, GSM antennas, configurable digital/analog inputs, negative info, and motivation inputs. Boasting three DOUT outputs, Bluetooth connectivity, and a backup battery, this versatile device is built on the latest Teltonika platform, retaining all functionalities from the FMB130 while adding IP67 protection against dust and water.

This tracker ensures resilience against dust and brief water exposure, making it suitable for both internal and external vehicle mounting. Its robust design guarantees reliable operation in high-pressure water, muddy, or dusty conditions, addressing the needs of industries facing harsh environments, including agriculture, construction, and mining.

Similar to the FMB130, the FMB230 features 3xDOUT, accommodating simultaneous use of three different DOUT scenarios such as immobilizer, bell, alert lights, door lock, and more.

Key Features of Teltonika FMB230:

  • Teltonika TM2500 quad band module (GSM 850 / 900 / 1800 / 1900 MHz)
  • GPRS Multi-Slot class 12 (Up to 85.6 kbps)
  • SMS (text, data)
  • Integrated GNSS receiver
  • Up to -165 dBm GNSS receiver sensitivity

Hardware Highlights:

  • Built-in movement sensor
  • Built-in Bluetooth 4.0 LE
  • Internal High Gain GNSS antenna
  • Internal High Gain GSM antenna
  • Internal flash memory 128MB (422,400 Records)
  • 170 mAh Li-ion rechargeable 3.7 V battery (0.63 Wh)

Interface Features:

  • Power supply: +10…+30 V
  • 3 digital inputs
  • 1 negative input (DIN2)
  • 2 impulse inputs (DIN1, DIN2)
  • 2 analog inputs
  • 3 digital outputs (for external relays, LED, buzzers, etc.)
  • 1-Wire temperature sensor
  • 1-Wire iButton
  • LVCAN RX (INPUT 5)
  • LVCAN TX (INPUT 6)
  • 2 LEDs indicating device status

Special Attributes of Teltonika FMB230:

  • Fast position fix (Outdoor areas)
  • High-quality tracking, even in high-density urban canyons
  • Ultra-small case
  • Ready for harsh environments
  • Easy to mount in limited access areas
  • Firmly fasten
  • 2 LED status indications
  • Real-time tracking
  • Smart data acquisition based on time, speed, angle, distance, ignition, or any other I/O event
  • Data transmission via GPRS
  • GPRS and SMS I/O events
  • Virtual odometer
  • Jamming detection
  • Configurable using Secured SMS Commands
  • 1x micro SIM card; 1x eSIM
  • Overvoltage protection

Integration is designed to meet specific requirements, subject to the applicable terms and conditions of our software.
