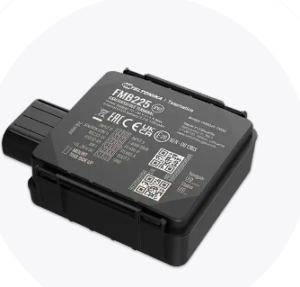

Teltonika FMB225

Manufacturer: Teltonika

Teltonika FMB225 is a WATER AND Residue Safe tracker with inner high increase GSM and GNSS radio wires, which can gather gadget organises and other helpful information and move them through GSM organization to server.

Teltonika FMB225 is created on the current Teltonika stage, in this manner it keeps each of the functionalities from FMB125 with an extra IP67 protection from residue and water.

The FMB225 functions as a tracking terminal with GNSS and GSM connectivity, proficient in gathering device coordinates and transmitting them via the GSM network to a server. This device is ideal for applications requiring precise location tracking of remote objects.

Key Features of Teltonika FMB225:

GSM / GPRS / GNSS Capabilities:

  • Uses Teltonika TM2500 quad band module (GSM 850 / 900 / 1800 / 1900 MHz).
  • Supports GPRS Multi-Slot class 12 with speeds up to 85.6 kbps.
  • Facilitates SMS communication for text and data.
  • Includes an integrated GNSS receiver with up to -165 dBm receiver sensitivity.

Hardware Specifications of Teltonika FMB225:

  • Features a built-in movement sensor and Bluetooth 4.0 LE.
  • Incorporates internal GNSS and High Gain GSM antennas.
  • Possesses 128MB internal flash memory (capable of storing 422,400 records).
  • Equipped with a 170mAh Li-ion rechargeable 3.7 V battery.

Interface Features of Teltonika FMB225:

  • Operates on a power supply ranging from +10 to +30 V.
  • Provides 1 digital input, 1 analog input, and 1 open collector digital output for external device connections.
  • Includes 1-Wire temperature sensor, 1-Wire iButton, LVCAN RX (INPUT 5), LVCAN TX (INPUT 6), 1 RS-232 interface, and 1 RS-485 interface.
  • Features 2 LEDs indicating device status.

Special Attributes of Teltonika FMB225:

  • Ensures fast position fix in outdoor areas.
  • Guarantees high-quality tracking, even in densely populated urban canyons.
  • Boasts an ultra-small case.
  • Ready for harsh environments.
  • Easy to mount in limited access areas.
  • Provides firm fastening.
  • Includes 2 LED status indicators.
  • Enables real-time tracking.
  • Smart data acquisition based on time, speed, angle, distance, ignition, or any other I/O event.
  • Sends acquired data via GPRS, supporting GPRS and SMS I/O events.
  • Offers a virtual odometer and jamming detection.
  • Configurable using secured SMS commands.
  • Accepts 1 micro SIM card and 1 eSIM.
  • Equipped with overvoltage protection.

In conclusion, the FMB225 is a versatile tracking terminal designed for seamless and efficient location tracking, offering a range of features suitable for various applications.

Integration is tailored to meet specific requirements, subject to applicable terms and conditions of our software.
