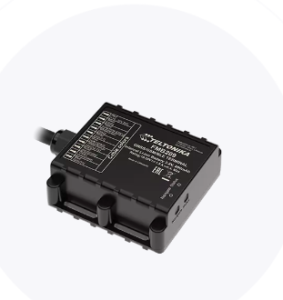

Teltonika FMB209 is a waterproof tracker equipped with a new-age module that has IRNSS support for the Indian consistency market. Teltonika planned an Exceptional tracker to satisfy the necessities of AIS140 guidelines and convey extra incentives for GPS telematics.
The Teltonika FMB209 serves as a tracking terminal equipped with GNSS and GSM connectivity. Its primary function involves collecting device coordinates and transferring them to a server via the GSM network. This device is particularly well-suited for applications that demand the precise location tracking of remote objects.
Key Features of Teltonika FMB209:
GSM / GPRS / GNSS Capabilities:
- Utilizes Teltonika TM2500 quad band module (GSM 850 / 900 / 1800 / 1900 MHz).
- Supports GPRS Multi-Slot class 12 with speeds of up to 85.6 kbps.
- Enables SMS communication for text and data.
- Features an integrated GNSS receiver with a sensitivity of up to -162 dBm.
- Utilizes AG3335MN as the GNSS Module.
Hardware Specifications of Teltonika FMB209:
- Possesses 128 MB internal Flash memory, capable of storing 422,400 records.
- Includes a built-in movement sensor for enhanced functionality.
- Equipped with an integrated Li-ion battery (3.75V, 800mAh) specific to the FMB209 device.
- Incorporates an Internal High Gain GSM antenna.
- Comes with an Internal High Gain GNSS antenna.
- Operates on a power supply ranging from 10 to 30V.
- Features a USB port for convenient connectivity.
- Offers 2 digital inputs and 2 Analog/Digital inputs.
- Provides 2 open collector digital outputs for external device connections.
- Includes an RS232 connection.
- Features 2 LED indicators for monitoring device status.
- Ensures high-quality tracking, even in densely populated urban canyons.
- Designed to withstand harsh environmental conditions.
- Allows for various event triggers (external sensor, input, speed, temperature, etc.).
- Facilitates highly configurable data acquisition and transmission.
- Supports multiple Geo-fence areas.
- Offers sleep mode and deep sleep mode options.
- Provides configurable scenarios.
- Enables real-time process monitoring.
- Includes an authorized number list for remote access.
- Supports firmware updates over GPRS or USB port.
- Allows configuration updates via GPRS, SMS, or USB port.
- Supports TCP/IP or UDP/IP protocols.
- Capable of storing over 500,000 records with overvoltage protection.
||Green Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
||GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
|Configuration and firmware update
||FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
||Configuration, Events, DOUT control, Debug
||Configuration, DOUT control, Debug
||GPS, NITZ, NTP
||LLS (Analog), Digital LLS (RS232), OBDII dongle
||Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
||Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary
