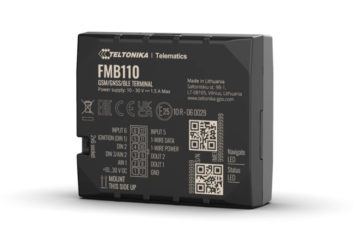

Teltonika FMB110

Manufacturer: Teltonika
fmb110

The Teltonika FMB110 serves as a tracking terminal with GNSS and GSM connectivity, efficiently gathering device coordinates and seamlessly transferring them via the GSM network to a server. This device excels in applications necessitating precise location data for remote objects.

Key Features of Teltonika FMB110:

  1. Teltonika TM2500 Quad Band Module:
    • Supports GSM frequencies of 850/900/1800/1900 MHz.
  2. Efficient Data Transfer:
    • GPRS Multi-Slot class 12 for streamlined communication.
  3. Versatile Messaging:
    • Supports SMS for both text and data transmission.
  4. Integrated GNSS Receiver:
    • Ensures high sensitivity, up to -165 dBm.

Hardware Attributes of Teltonika FMB110:

  1. Built-in Sensors:
    • Includes a movement sensor for enhanced tracking.
  2. Bluetooth 4.0 LE Capability:
    • Facilitates low-energy wireless connectivity.
  3. High-Gain Antennas:
    • Internal GNSS and GSM antennas optimize signal reception.
  4. Ample Internal Flash Memory:
    • 128MB for storing up to 422,400 records.

Interface Features of Teltonika FMB110:

  1. Wide Power Supply Range (10-30V):
    • Enables compatibility with diverse power sources.
  2. Versatile Inputs and Outputs:
    • Includes 2 digital inputs, 1 analog input, 1 configurable input, 2 open collector digital outputs, 1-Wire temperature sensor, 1-Wire iButton, LVCAN RX, and LVCAN TX.
  3. Status Indicators:
    • Two LEDs for indicating device status.

Special Features of Teltonika FMB110:

  1. Swift Position Fix (Outdoor Areas):
    • Ensures a rapid and accurate outdoor location fix.
  2. Reliable Tracking in Urban Environments:
    • High-quality tracking, even in densely urbanized areas.
  3. Compact Design:
    • Ultra-small case for enhanced portability.
  4. Durability for Harsh Environments:
    • Built to withstand challenging conditions.
  5. Easy Installation in Limited Access Areas:
    • FMB110 is designed for hassle-free mounting in restricted spaces.
  6. Secure Fastening:
    • Provides a firm and secure attachment.
  7. Real-Time Tracking:
    • Facilitates live tracking updates.
  8. Smart Data Acquisition:
    • Based on time, speed, angle, distance, ignition, or other I/O events.
  9. Communication Modes:
    • Data transmission via GPRS and SMS I/O events.
  10. Versatile Features:
    • Includes a virtual odometer, jamming detection, and configurability using Secured SMS Commands.
  11. SIM Card Options:
    • Equipped with 1 micro SIM card and 1 eSIM.
  12. Overvoltage Protection:
    • Ensures device safety during voltage fluctuations.

In summary, the FMB110 offers a comprehensive set of features, making it an ideal choice for applications requiring reliable and precise tracking, regardless of environmental challenges.
