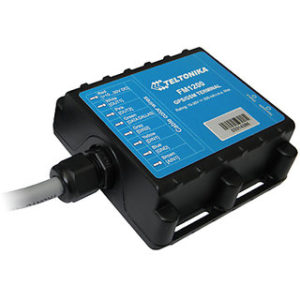

Teltonika FM1200 is a GPS and GSM terminal designed for determining and transmitting object coordinates through the GSM network. It is well-suited for applications requiring remote object location.
Additionally, FM1200 features extra inputs and outputs, enabling the remote control and monitoring of other devices on objects. The device includes a USB port for device status log output and configuration input.
Key Features of Teltonika FM1200:
- Teltonika TM11Q quad-band module (GSM 850 / 900 / 1800 / 1900 MHz).
- GPRS class 10 for efficient data transfer.
- SMS capability for text and data.
- uBlox NEO-6 50 channel receiver with up to -160 dBm sensitivity.
Hardware Specifications of Teltonika FM1200:
- Cortex®-M3 processor for efficient processing.
- 16 MB internal Flash memory for storage.
- Built-in accelerometer for motion detection.
Interface Features of FM1200:
- Power supply range: 10 ÷ 30V.
- USB port for convenient connectivity.
- 2 digital inputs for versatile control.
- 1 digital/analog input (configurable) for flexibility.
- 2 open collector digital outputs for remote device control.
- 1Wire® temperature sensor for temperature monitoring.
- 1Wire® iButton for additional functionality.
- LEDs indicating device status.
Special Features of Teltonika FM1200:
- Event triggers for various elements (external sensor, input, speed, temperature, etc.)
- Highly configurable data acquisition and sending.
- Multiple Geo-fence areas for enhanced security.
- Sleep mode for power efficiency.
- Deep sleep mode for further power conservation.
- Configurable scenarios for customized functionality.
- Real-time process of FM1200 monitoring for prompt insights.
- Authorized number list for secure remote access.
- Firmware update options over GPRS or USB port.
- Configuration update via GPRS, SMS, or USB port.
- Support for TCP/IP or UDP/IP protocols.
- Ample record storage capacity of 100,000 records.
FM1200 combines precise tracking capabilities with a range of features, making it a versatile solution for diverse remote monitoring and control applications.
Integration is designed to meet specific requirements, subject to the applicable terms and conditions of our software.
||CAN specific data
||Shows the moment of binding/unbinding a driver:
1 – binding
0 – unbinding
||Garmin driver status
||GSM signal strength level 0 (lowest) – 5 (highest)
||Horizontal Dilution of Precision
||Last Garmin driver status
||Value of special I/O property, where N – ID of property
||Position Dilution of Precision
0 – low
1 – high
2 – panic
3 – security
||Power supply voltage
||Vertical Dilution of Precision
