Teltonika MSP 500

Manufacturer: Teltonika

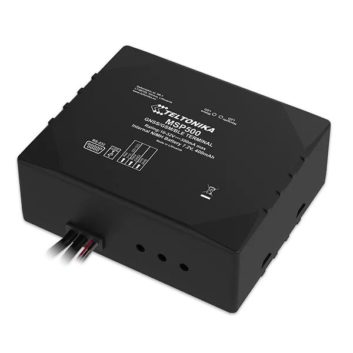

Teltonika MSP500

The Teltonika MSP500 is a specialized tracking device equipped with GNSS/GSM/Bluetooth capabilities, enabling it to gather and transmit device coordinates through the GSM network to a server. It features an integrated buzzer and relay for implementing speed limits based on fuel pump power supply switching. The device is designed with internal GNSS/GSM antennas, an RS232 interface for ESC/POS printer support, and a built-in Ni-Mh battery. It is an ideal choice for applications requiring the tracking of remote objects and control of fuel pumps to prevent overspeeding.

Features of Teltonika MSP500:

  • Teltonika TM2500 multi-band module (GSM 850 / 900 / 1800 / 1900 MHz).
  • GPRS class 12, supporting SMS (text, data).
  • Integrated GNSS receiver with up to -165 dBm sensitivity.

Hardware Features of Teltonika MSP500:

  • Built-in relay, buzzer, and movement sensor.
  • Bluetooth 4.0 integration.
  • Internal High Gain GNSS and GSM antennas.
  • 128MB internal flash memory.
  • 400 mAh rechargeable 7.2 V Ni-MH battery.

Teltonika MSP500 Interface Features:

  • Power supply range: 10 ÷ 30 V.
  • USB B-TYPE port.
  • 2 LEDs for device status indication.

Special Features of Teltonika MSP500:

  • Integrated Relay terminal for speed limiting based on fuel pump power supply switching.
  • RS232 interface for ESC/POS printer support.
  • Fast position fix and high-quality tracking even in dense urban areas.
  • Real-time tracking with smart data acquisition based on time, angle, distance, ignition, or other I/O events.
  • GPRS and SMS I/O events, virtual odometer, jamming detection, and overvoltage protection.
  • Configurable using Secured SMS Commands.

The Teltonika MSP500 is a reliable solution for applications requiring precise location tracking and fuel pump control to enhance safety and prevent excessive speeds.

Furthermore, the Teltonika MSP500 device seamlessly integrates with our tracking software and fleet tracking platform, offering full compatibility customizable to the customer’s preferences. Integration is tailored to meet specific requirements, subject to applicable terms and conditions of our software.
