Technoton DUT-E

Home » GPS Tracker » Technoton DUT-E

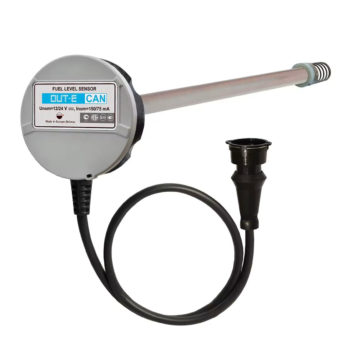

DUT-E fuel level sensor is used for accurate fuel level and volume measurement in tanks of vehicles and stationary units. DUT-E allows determining current fuel volume and change in volume (refueling or draining) of fuel in the tank.

DUT-E is used in GPS tracking and vehicle telematics systems as additional fuel sensor or as a replacement of standard built-in (factory) fuel level sensor. When used as a part of telematics system, DUT-E allows getting reliable and accurate information on current fuel volume in the tank and to reveal misuse and fuel theft from tank. DUT-E also gives a general overview on fuel usage by vehicle or stationary unit.

INFORMATION
FEATURES

Name	Description
Server Port

Specification

Operating principle		capacitive
Measurement inaccuracy, %, not more than		0.2 for stationary fuel tanks and standing vehicles; 1 for moving vehicles
Supply voltage, V		10-45
Overvoltage protection, V		up to 100
Operating temperature, ^оC		from -40 to +85
Relative measuring error (to the length of the measuring part), %, not more than		±1
Output signal		digital, CAN j1939/S6 digital, RS 232 (DUT-E COM protocol) digital RS 485 (DUT-E COM protocol) analog-frequency output 1-9 V / 500-1500 Hz; * – other output are also available on request
Standard length, mm		350, 700, 1000
