Name | Description |
---|---|
Server Port | 5189 |

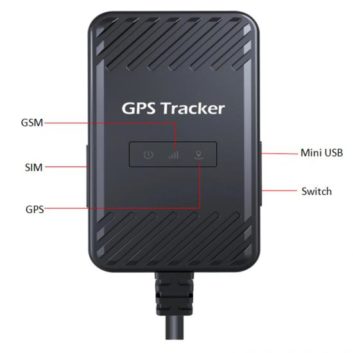

HB-A5D 4G Waterproof GPS vehicle tracker | |||
Function | Parameter | Note | |
Communication | 2G | 900/1800MHZ | Default configuration, Large quantities of orders can be changed. |
3G | ○ | ||
4G | LTE TDD:B34/B38/B39/B40/B41
LTE FDD:B1/B3/B5/B8 |
||
Positioning | Mode | GPS/BDS | |
Sensitivity | Capture: -148dBm
Track: -162dBm |
||
Start Time | 32s | ||
Hardware | Working voltage | 7V-90V | |
Working current | 20mA | ||
Working temperature | -30℃~+70℃ | ||
Storage temperature | -40℃~+85℃ | ||
Battery | 80mAh | Standby time: 30 min | |
Size | 85 *50 * 16mm | ||
Protection level | IP65 | ||
Weight | 65g | Onlydevice host | |
Interface | ACC detection | 1 | |
Relay | 1 | Connect relay. | |
Serial port
(Micro USB) |
1 | Connect the configuration serial cable | |
SIM card | 1 | ||
IO/AD | 1 | Connect Temperature sensor or Fuel sensor |
