Name | Description |
---|---|
Server Port | 5189 |

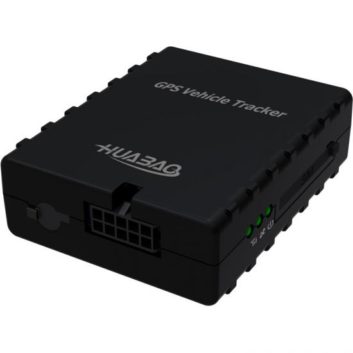

HB-A6 2G GPS Vehicle tracker with built-in antenna | |||
Function | Parameter | Note | |
Communication | 2G | 850/900/1800/900MHz | |
Positioning | Mode | GPS/BDS | Support to provide a single GPS module or change according to project requirements. |
Sensitivity |
Capture: -148dBm
Track: -162dBm
|
||
Start Time | 36s | ||
Hardware | Working voltage | 9V-36V | |
Working current | 80mA | ||
Working temperature | -30℃~+70℃ | ||
Storage temperature | -40℃~+85℃ | ||
Battery | 400mAh | Standby time: 2 hours | |
Size | 60 * 50 * 21mm | ||
Protection level | IP54 | ||
Weight | 120g | ||
Interface | ACC detection | 1 | |
SOS alarm | 1 | Connect the SOS button. | |
Digital input | 1 | ||
Digital output | 1 | ||
SIM card | 1 | ||
Audio output | 1 | Connect the MIC | |
GPS antenna | Option | External antenna | |
Serial port | 1 | RS232 port, connect external accessories. |
