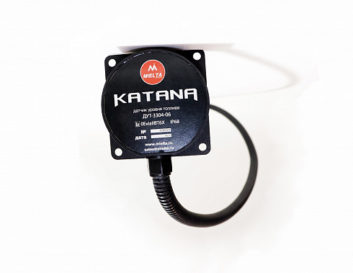

The Mielta Katana Fuel Level Sensor is specially designed for those who value the perfect price-quality ratio. The sensor took from its «elder brother» – the dut Mielta Zond – a verified, carefully selected component base, a solid vandal-resistant aluminium body, spark-proof power supply.
The sensor has metal tools for wiring. The universal connector, which has become a industry standard, facilitates the installation.
The unified length of the measuring part of 70 cm allows the use of the sensor in a variety of spheres.
Due to the software processing of the data, the accuracy of the sensor measurement is not more than 1 per cent. Configurable frequency output and RS-485 digital interface with LLS protocol support at different data exchange speeds allow optimum configuration of control system for each object.
The advanced configuration and data exchange protocol, software update, password protection, configuration change log, and the possibility of storing the calibration table in combination with the PC configuration program allows to adjust the sensor flexibly and quickly.
|POWER SUPPLY||8 – 55 V|
|TRANSMITTER POWER||0,5 W|
|MEASUREMENT PERIOD||1 sеc|
|AVERAGING INTERVAL||1-60 sеc|
|RELATIVE MEASUREMENT ERROR||1%|
|MEASUREMENT LENGTH||700 mm|
|Frequency output, maximum range||30-2048 Hz|
|Frequency output resolution||1 Hz|
|Frequency Outlet Lift to Power||2 кОm|
|Frequency output current restriction||100 mА|
|Rate RS485||9600, 19200, 38400, 57600, 115200 бод, 8n1|
|OPERATING TEMPERATURE||-40..+80 °С|
