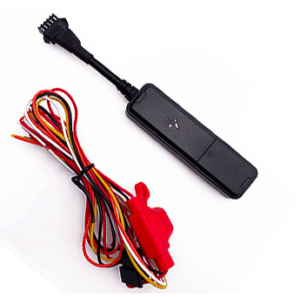

Libi Technologies LT05 AC

Manufacturer: Libi Technologies
LT05 AC

Libi Technologies LT05 AC, a state-of-the-art tracking device designed for precision and versatility. From accurate position performance to intelligent self-diagnosis, this device is tailored for various applications, especially in scooter, motorcycle, electric vehicles, as well as automotive financial risk control projects.

Multi-Mode Positioning Precision

The LT05+ boasts support for GPS/Beidou, AGPS, and LBS, ensuring accurate positioning performance in diverse environments. This multi-mode positioning capability also enhances the device’s adaptability and reliability.

High-Sensitivity G-Sensor Accelerometer

Built with a high-sensitivity G-sensor accelerometer, the LT05+ excels in detecting and responding to vehicle movements with precision. This feature contributes to the overall accuracy of the tracking system.

Intelligent Functions for Enhanced Control

The device supports intelligent self-diagnosis, power-saving modes, remote fuel and power cutoff, over-the-air (OTA) updates, and a comprehensive array of alarm functions. These intelligent features also provide a seamless and efficient tracking experience.

Compact Design for Concealed Installation

With a small and convenient design, the LT05+ is specifically crafted for concealed installations. Its compact size makes it an ideal choice for discreet placement, ensuring effective tracking without compromising aesthetics.

Functions

Position Accuracy and Compensation

Benefit from high position accuracy with support for GPS/Beidou and LBS. The device also features blind zone compensation and static drift suppression, ensuring precise location information.

Multiple Alarm Detection

The LT05+ is equipped with a range of alarm functions, including vibration detection, cable cut-off alerts, speeding, low-speed alerts, low voltage warnings, and more. These alarms also enhance security and offer real-time notifications for potential issues.

Intelligent Control Capabilities

The device supports remote power and fuel cutoff, allowing users to exercise control over the vehicle remotely. Additionally, it facilitates remote configuration and over-the-air updates for convenient management.

Hardware Technical Specification

Explore the technical specifications that make the LT05+ a reliable and efficient tracking solution.

  • Working Voltage: DC 9V~100V
  • Dimension: 82mm×22mm×12mm
  • Working Current: Average Current <30mA (DC12V), Maximum Current <100mA (DC12V)
  • Built-in Battery: 120mAh, 3.7V, Lithium polymer battery
  • Working Temperature: -20℃~70℃
  • Storage Temperature: -40℃~85℃
  • Relative Humidity: 5%~95%
  • GPRS: Class 12, TCP/IP
  • GPS Channel: 20
  • GPS Sensitivity: -159dBm
  • Acquisition Sensitivity: -144dBm
  • Position Accuracy: 5~10m
  • TTFF (Open Sky):
    • Cold Start: <38s
    • Warm Start: <32s
    • Hot Start: <2s
  • Standby Average Current: ~0.8mA (12V DC), ~0.4mA (24V DC)
  • GSM/GPS Antenna: Built-in design
  • Data Transmit: TCP, SMS

LT05+: Remote Control Capability

Libi Technologies LT05 AC + not only encompasses all the features of the LT05 but goes a step further with the capability to remotely stop the vehicle. This can be achieved through a simple SMS command or by pressing a button from the Libi Technologies mobile app, while offering users an added layer of control and security.

In conclusion, the LT05+ stands as an advanced tracking solution, combining precision, intelligence, and remote control capabilities. Businesses and individuals seeking an elevated tracking experience can rely on the LT05+ to provide a comprehensive and efficient solution for various tracking needs.
