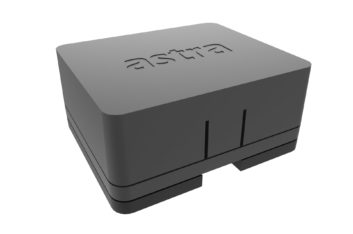

Astra Telematics AT500 Mini

Home » GPS Tracker » Astra Telematics AT500 Mini

Our AT500 makes tracking of the smallest, unpowered assets easier than ever! With up to 6 months battery life and Qi wireless charging, its clear to see why this tiny magnetic mount device is so popular.

The AT500 comes with BLE as standard for easy configuration and diagnostics via smartphone. Future-proof communications include LTE Cat M1 and NB-IoT communications, in addition to GPRS fallback.

INFORMATION
FEATURES

Name	Description
Server Port	5723

AT500

Technical Specifications

Accelerometer	Yes
BLE (Bluetooth)	Yes
GNSS Antenna Size	15mm
Mobile Network Communications	GSM/GPRS(2G) + LTE CatM1 + NB-IoT
GSM Antenna	Internal
GNSS Antenna Type	Internal
SIM Card Format	e-SIM
Qi Wireless Charging	Yes
Battery Life (LP mode, 24hr reporting)	6 months
Battery Capacity (internal)	2200mAh
1-Wire / Dallas	0
ADC Inputs	0
AUX 3.3V Out	No
CANBus	No
Digital Inputs	0
Driver ID	No
Digital Outputs	0
Ingress Protection	IP68
LED Indicators	None
RS232 Ports	0
Tamper Sensor	No
