Astra Telematics AT211

Manufacturer: Astra Telematics
AT211

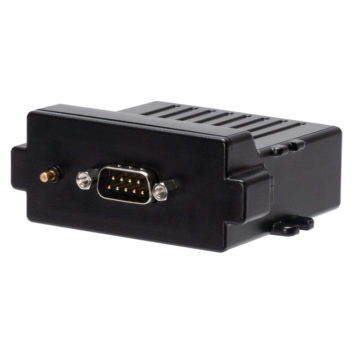

Astra Telematics AT211 device, which employs the same technology found in our ‘budget’ AT202 device. It shares similar features and I/O, enclosed in a robust IP67 casing designed specifically for plant and machinery security applications.

The AT211 boasts internal integrated antennas for both LTE/GSM and GNSS. Additionally, it offers the flexibility to connect an external antenna for GNSS. This becomes crucial for machines primarily constructed from metal, presenting limited opportunities for mounting devices with internal antennas.

Similar to its predecessor, the AT202, the AT211 is housed in a compact enclosure. Installation is made simple with the option to use double-sided foam adhesive tape or cable ties. For a step-by-step guide and more information on recommended installation tools, consumables, and procedures, please consult our Installation Guide located at the bottom of this page.

Tailored with plant and machinery applications in mind, the AT211 is also well-suited for tasks requiring some weather protection, such as motorcycles and caravans.

Now, let’s delve into the Astra Telematics AT211 technical specifications:

  • Mobile Network Communications: GSM/GPRS(2G) + LTE CatM1 + NB-IoT
  • Minimum Operating Voltage: 6.0V
  • Maximum Operating Voltage: 65.0V
  • Qi Wireless Charging: No
  • GSM Antenna: Internal
  • GNSS Antenna Type: Internal or External
  • GNSS Antenna Size: 25mm
  • BLE (Bluetooth): Option
  • SIM Card Format: Micro
  • Tamper Sensor: No
  • Accelerometer: Yes
  • Battery Capacity (internal): 510mAh
  • Battery Life (LP mode, 24hr reporting): 6 days

In summary, the AT211 combines advanced technology, practical features, and a rugged design, making it an ideal choice for diverse applications, from plant and machinery security to weather-protected use on motorcycles and caravans.

Integration of the device is subject to the terms and conditions of our software.
