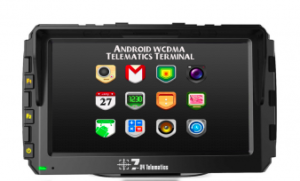

TS500A is an Android operating system based Across the board telematics terminal which is included with:
– 7 Inch large modern capacitive LCD Screen
– Android 4.2 operating system
– Support 3G, GPS Following and Route WIFI, Bluetooth
– IP65 tough modern Telematics Terminal
– 4CH Video Data sources and multi IOs accessible
Name | Description |
Server Port | 5447 |
Specification | Description | |
CPU | Arm | Dual core Cortex-A7, 1GHz |
OS | Android 4.2 | |
Memory | ROM (SLC/MLC) | 4G NAND Flash |
RAM(DDR) | DDR3 1GB | |
Extend Slot | Micro SD (64G) and TF Card | |
Display | Type | 7 Inch TFT-LED QVGALCD Color Screen Touch Capacitance |
Resolution | QVGA (800X480) | |
Physical Buttons | Keyboard | Power Button, F1 and F2 customizable functionality buttons |
Standard Communication | Wifi Connection | Built-in 802.11b/g wireless wifi module |
Bluetooth | V4.1 | |
Digital Inputs | Total 4: 1 standard for Ignition, and 3 as customziable definition | |
Digital Ouputs | Total 2: one for 12V Control, one for 5V control | |
Analogue Input | 1 | |
Uart | 3 RS232 Ports | |
RS485 | 1 | |
USB Host 2.0 | 1 | |
USB Device 2.0 | 2 | |
Speaker | 8R/1.5W | |
Microphone | Built-in | |
Video | 4Channel Video Inputs, Hardware Decoding H.264 | |
GPS | Built-in GPS receiver and Antenna, External GPS antenna with SMA Connector standard | |
GSM | Internal Antenna, Built-in 3G modem :UMTS/HSDPA:900/2100MHz,GSM/GPRS:900/1800MHz; DATA: HSDPA, UMTS, EDGE, GPRS, CSD; Max.384Kbps (UL);Max.3.6Mbps (D |
|
Power | External Power Range | 8-32V DC |
Standby Internal Battery | 600mAH | |
IP Rated | IP65 | |
Mechanical | Dimension | 29*123*193mm |
Net Weight | 670g |
