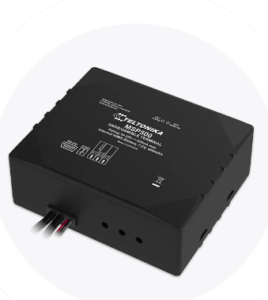

MSP500 is a special tracking terminal with GNSS/GSM/Bluetooth connectivity, internal GNSS/GSM antennas, RS232 interface and internal Ni-Mh battery. Device was designed for speed limiting control.
Speed limiting
Moreover, device contains integrated buzzer and relay for a speed limiting functionality based on a fuel pump power supply switching or accelerator pedal control using additional electronic throttle controller.
Name | Description |
Server Port | 21927 |
Sensors | Accelerometer |
Scenarios | Green Driving, Over Speeding detection with relay control, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Limp mode |
Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Sleep |
Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth) |
SMS | Configuration, Events, Debug |
GPRS commands | Configuration, Debug |
Time Synchronization | GPS, NITZ, NTP |
RS232 modes | Log mode, NMEA, LLS, TCP ASCII/Binary, LCD, RFID HID/MDF7, Garmin FMI, POS Printer |
Ignition detection | Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
