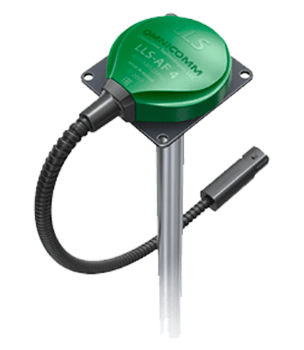

Omnicomm LLS-AF4

Home » GPS Tracker » Omnicomm LLS-AF4

We’ve reworked the hardware design of the new Omnicomm LLS-AF4 to achieve even greater stability. This seriously robust and efficient sensor is intended for use with cheaper terminals that don’t yet support connection of the LLS 4 digital sensor over RS232/RS485 interfaces.

The LLS-AF 4 has analog and frequency-modulated outputs protected by galvanic insulation and works independently throughout the range of power supply voltage. It is equipped with a ‘Tough Road Conditions’ mode, as well as an enhanced cable connection slot that is ultra-resistant to humidity.

The LLS-AF 4 has an improved ingress protection rating of IP-69K.

INFORMATION
FEATURES

Name	Description
Server Port

Specification:

Error in measurement, %	± 1,0
Output	Analog / Frequency
Power supply voltage, V	7…45
Ingress protection rating	IP69k
Dielectric strength of galvanic isolation, min, V	250
Operating temperature, C	– 40 … +80
Temperature measuring range, C	– 40 … + 80
Resolution, bit	12
Output range of readings corresponding to the maximum value of measured level	5…20V / 100…2000Hz
Output range of readings corresponding to the minimum of measured level	0…15V / 30…1900Hz
